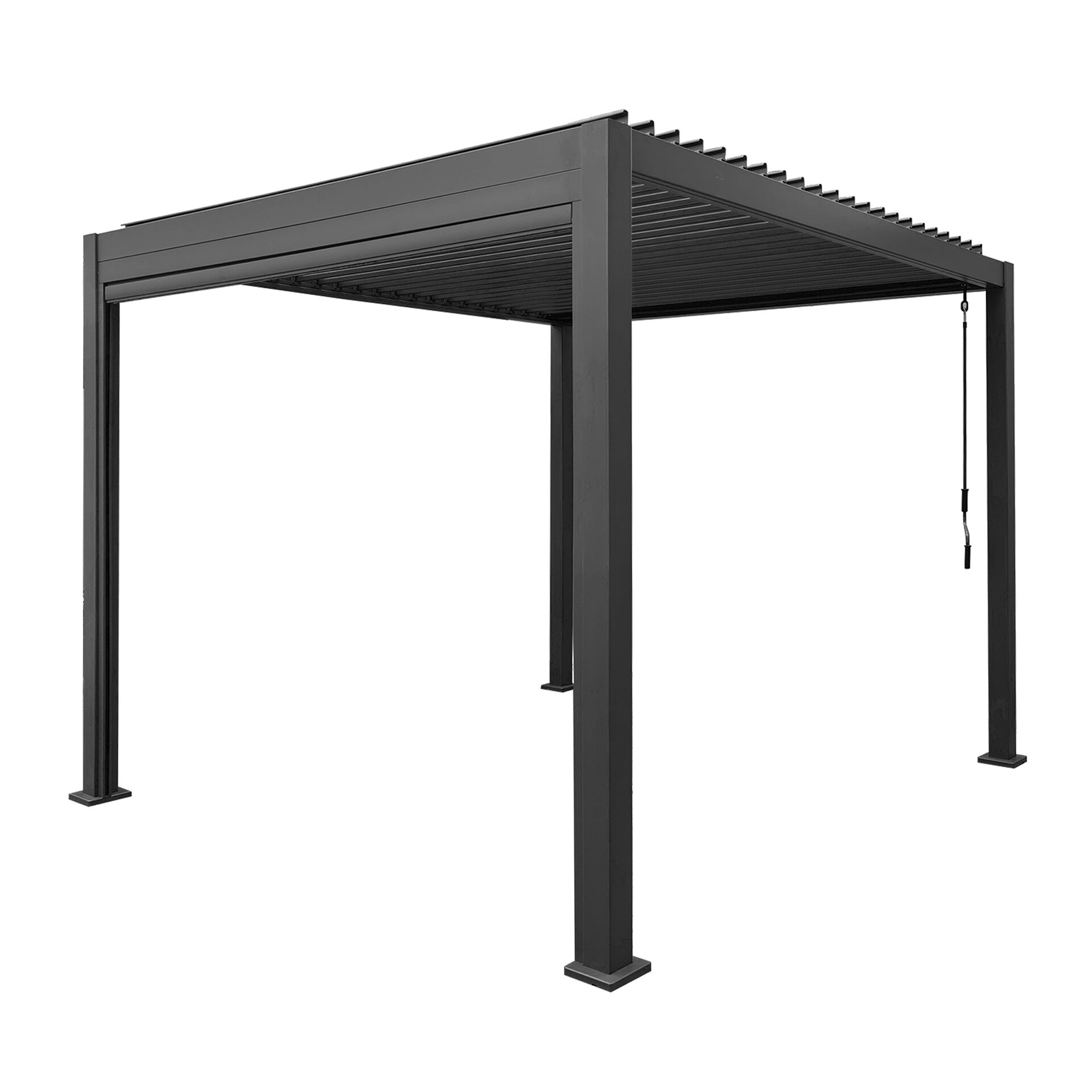

Maze - Jupiter 3m x 3m Aluminium Pergola Frame & Manual Operated Galvanised Steel Roof Louvres - Grey
Select Colour: Grey
Select Configuration:
£300
Pre order (Due in 06/01/27)
Product Benefits
Manual Roof
Frame Only
Easy Care
Easy To Operate
Retrofit
Weather Resistant
Product Overview

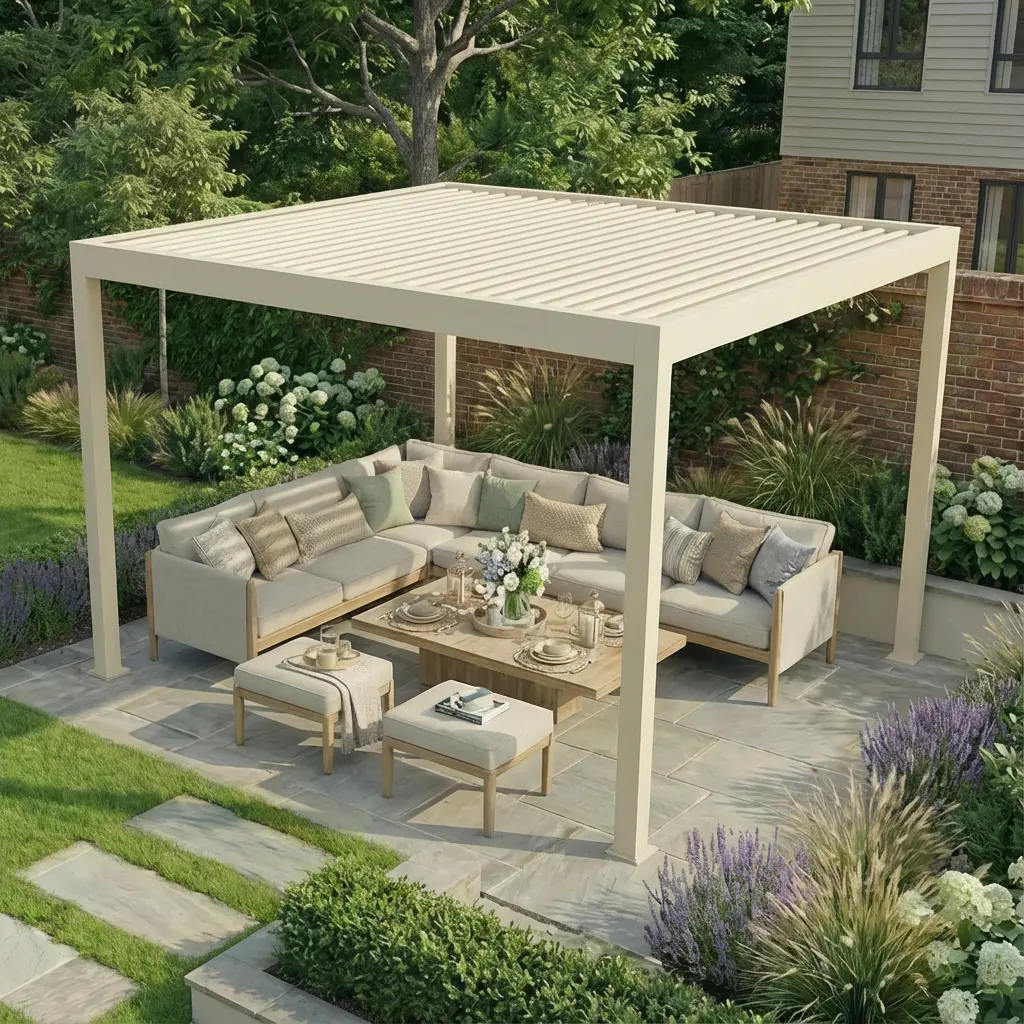

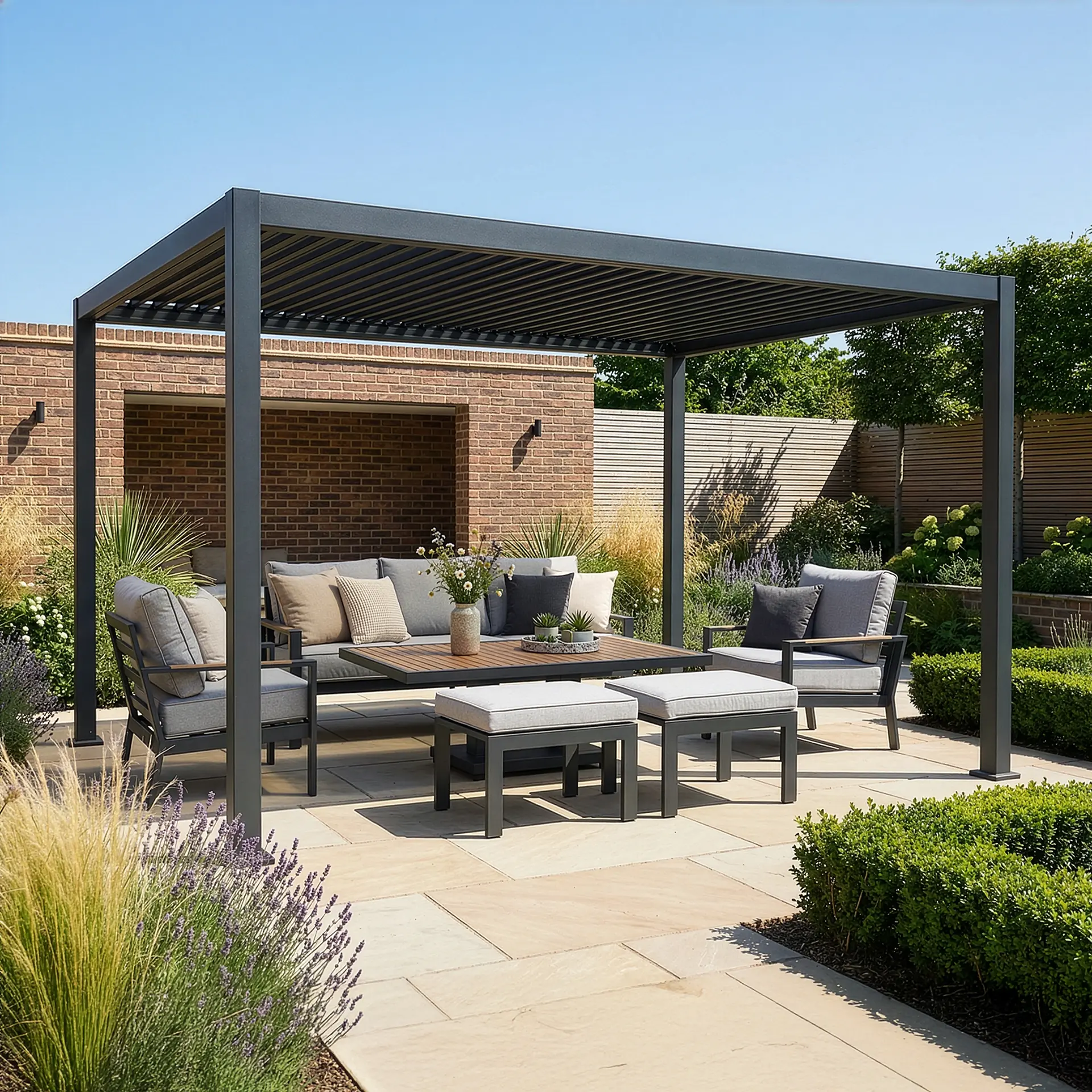

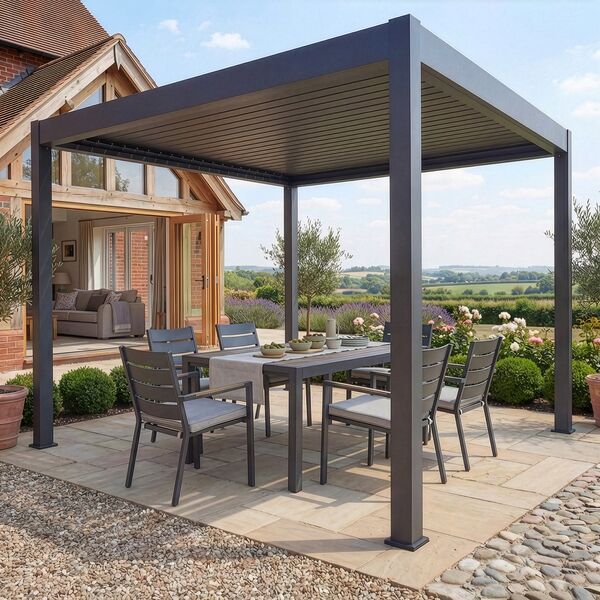

Enhance your outdoor space with the Maze Jupiter 3m x 3m Aluminium Pergola, thoughtfully engineered for style, durability, and practicality. The Jupiter Pergola is built with a sturdy aluminium frame and a full-width galvanised steel louvre roof, which allows for seamless light and airflow adjustments via a convenient crank handle. Finished in a sleek latte powder coating this stylish pergola is the perfect addition to your outdoor space.
The innovative roof system is designed with integrated water channels that direct rainwater from the roof frame into the pergola’s legs, where it exits through discreet holes at the base, keeping your outdoor area dry. Optional zip blinds made from durable texteline fabric provide additional shade and privacy. These blinds pull down effortlessly and feature a rubberised bottom edge, preventing leaves and debris from entering your space for a cleaner environment.
Pergolas must be installed on level ground for Drop Side Blinds to function properly.
We recommend the following:
-
400 mm³ Concrete Pad: The ideal foundation for maximum stability. It sits hidden beneath your final surface (tiles, decking, turf), allowing you to drill directly through for secure anchoring.
-
Tarmac, Slabs, or Block Paving: If the surface is under 150 mm thick or made of unknown composite material, lift the area and install a 400 mm³ postcrete pad underneath before mounting.
-
Decking: Can be installed directly onto secure decking, but due to wood/composite movement, a concrete pad or structural joist must be positioned beneath each footplate site.
-
Grass, Soil, or Gravel: A 400 mm³ postcrete pad is strictly required underneath every leg/footplate when fixing into loose ground.
Disclaimer: If the pergola is fitted with privacy blinds, we recommend fully opening the blinds during strong winds to prevent damage and ensure product longevity.

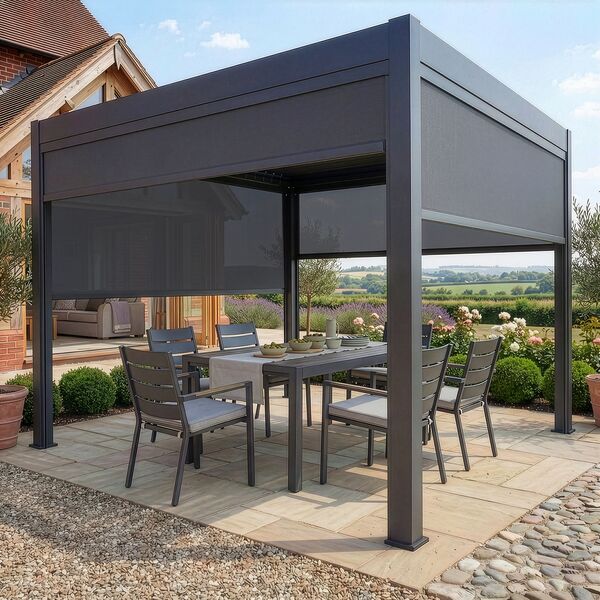

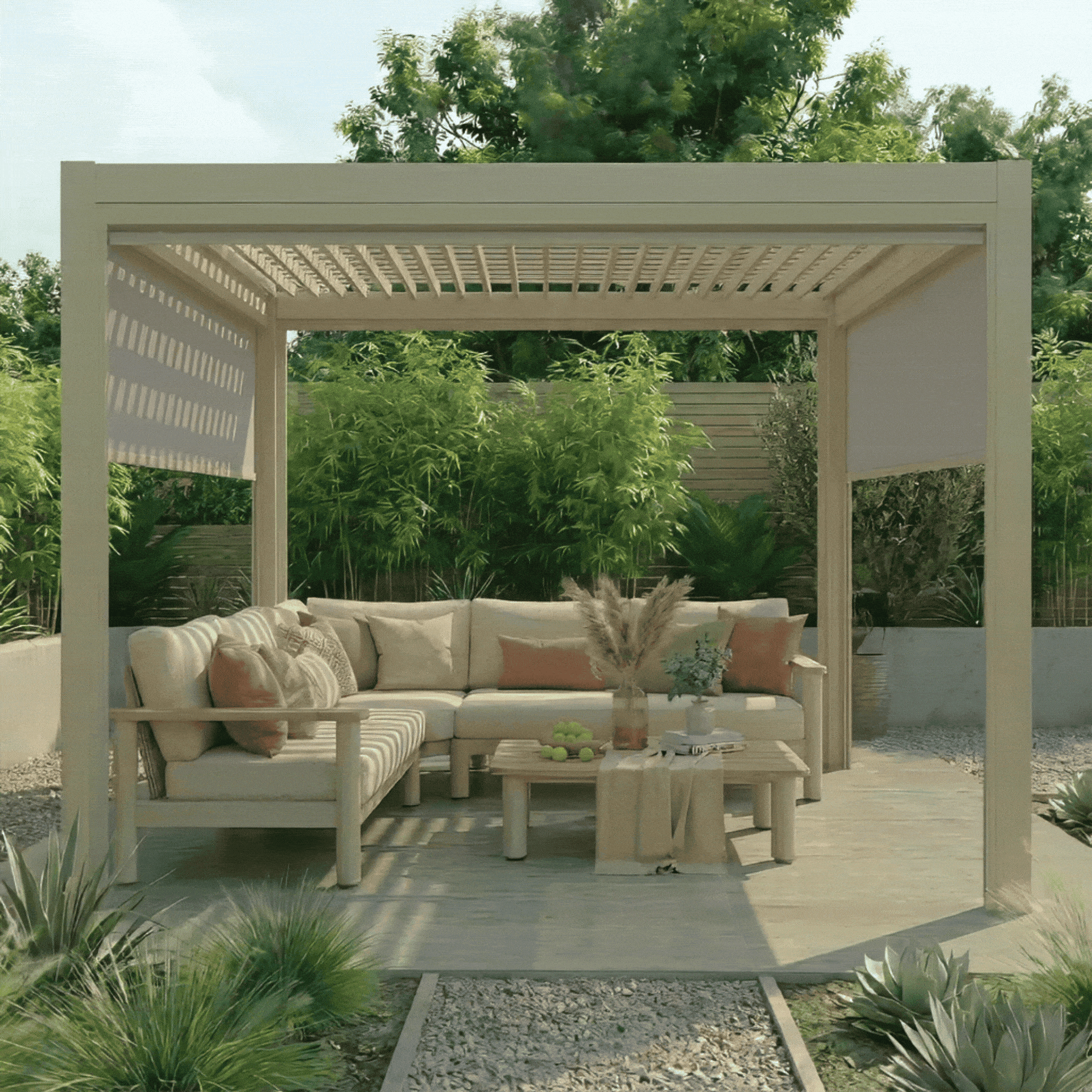

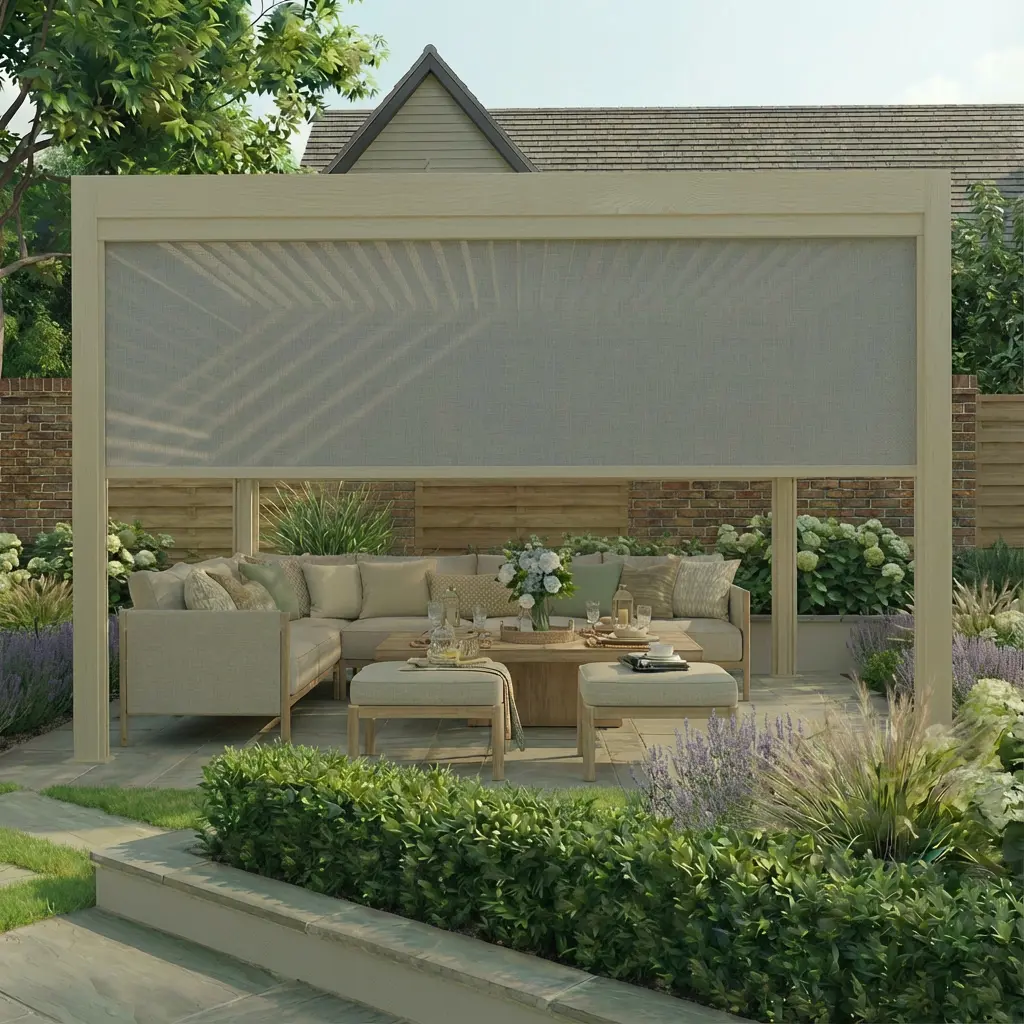

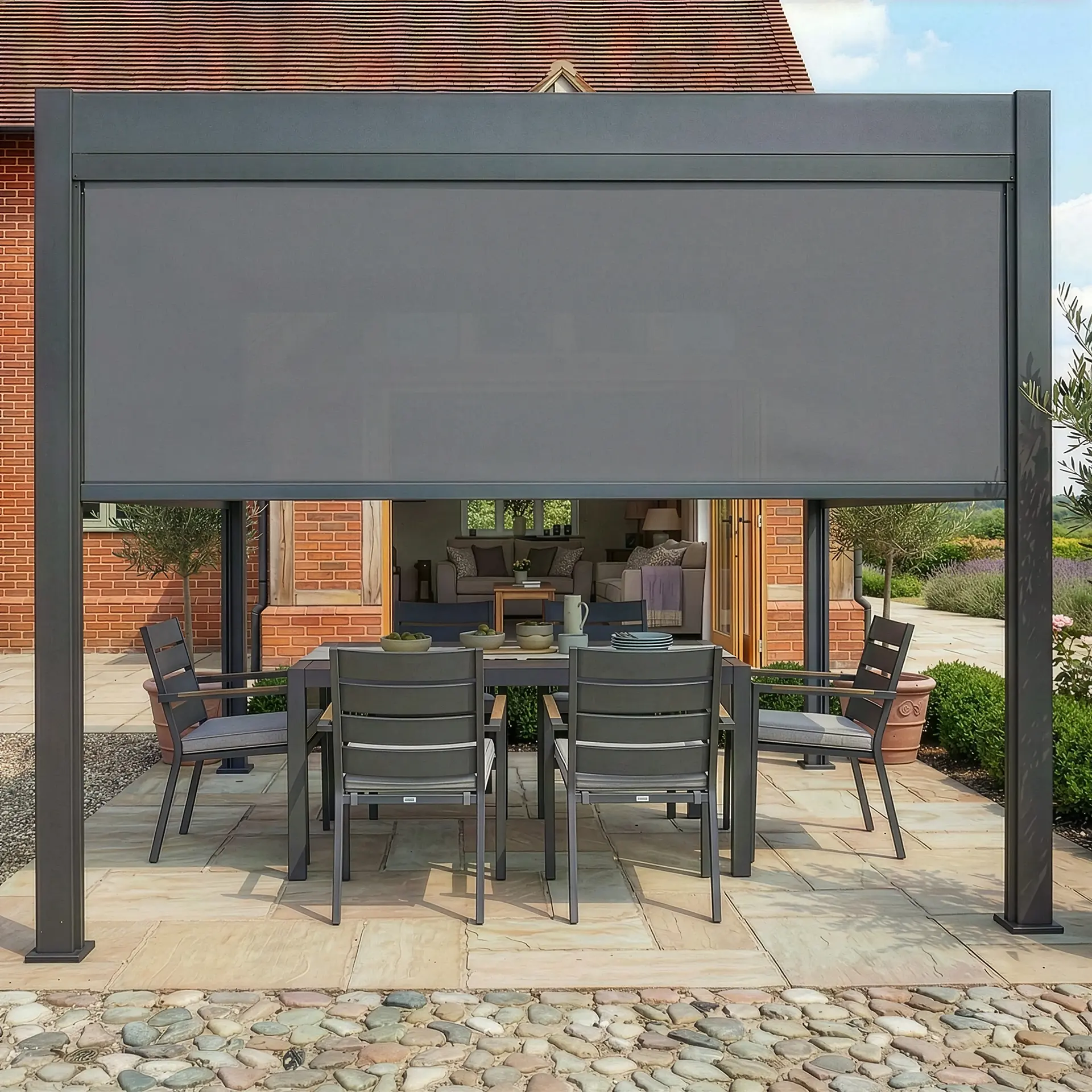

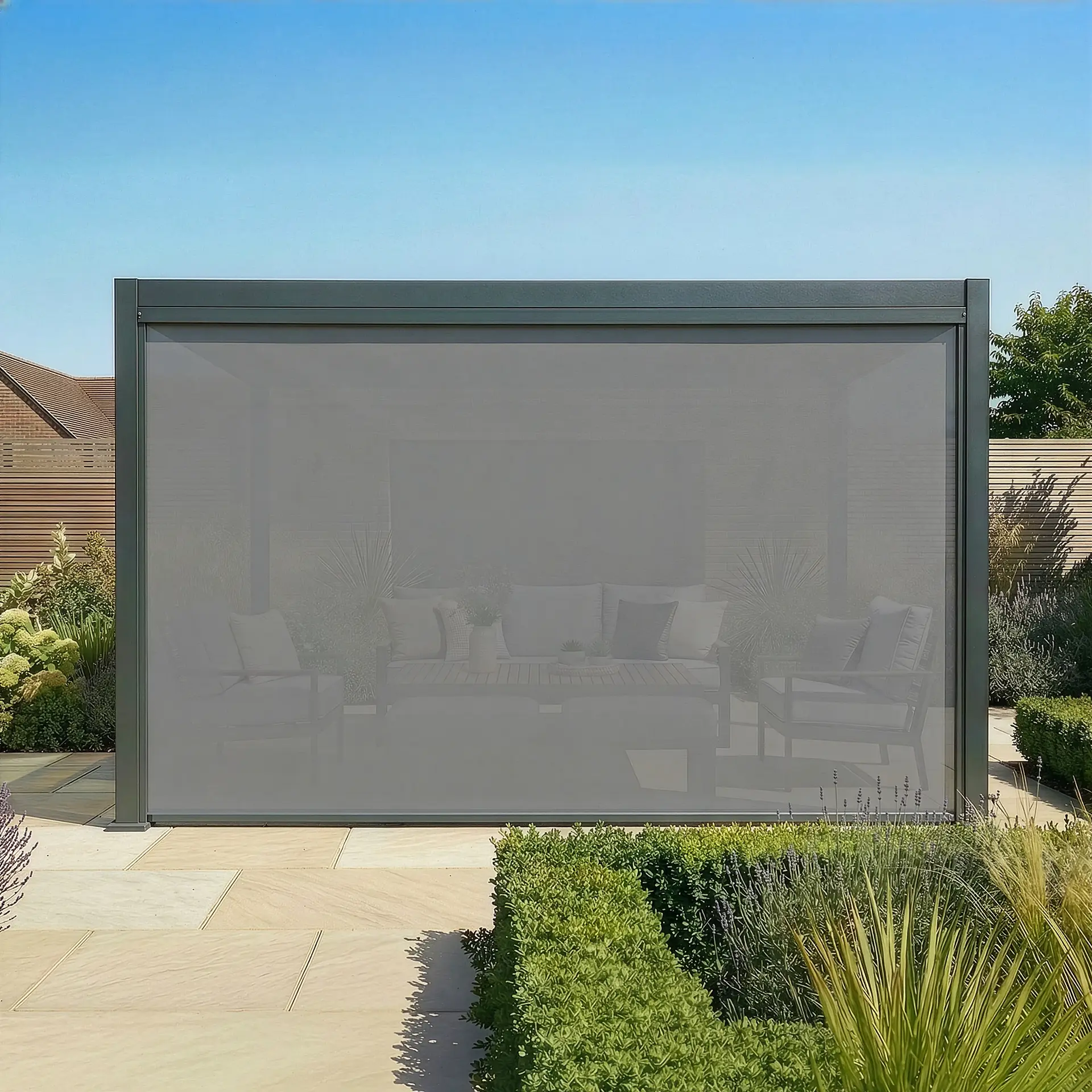

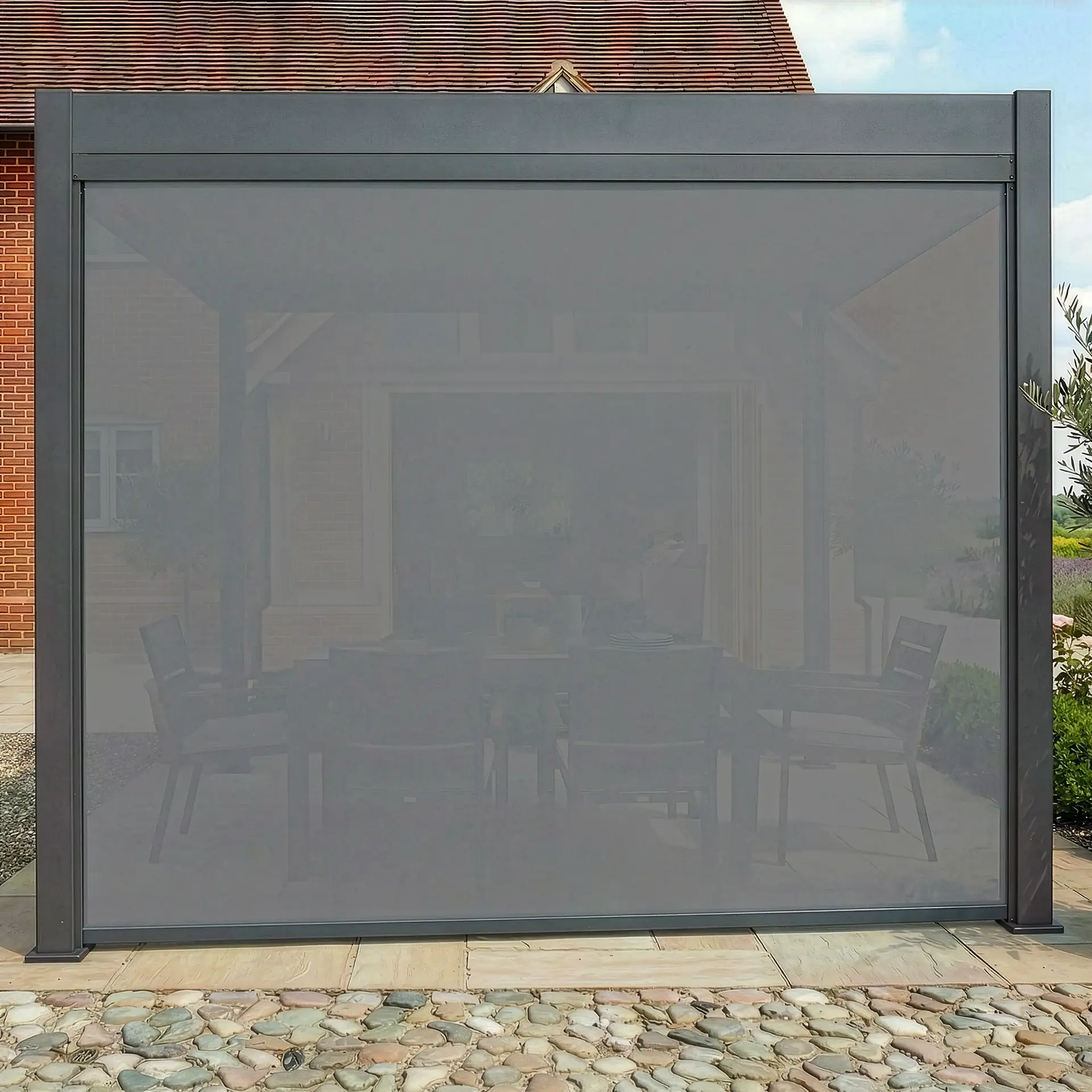

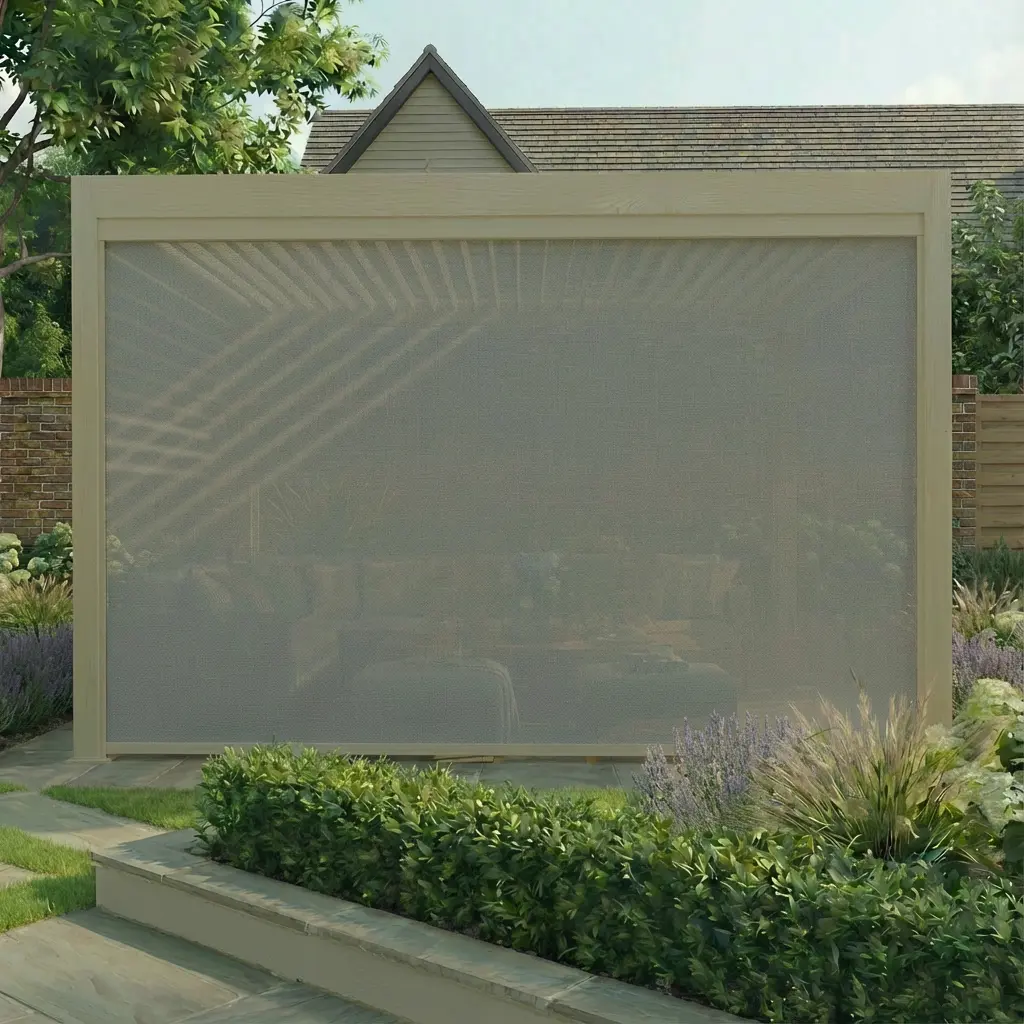

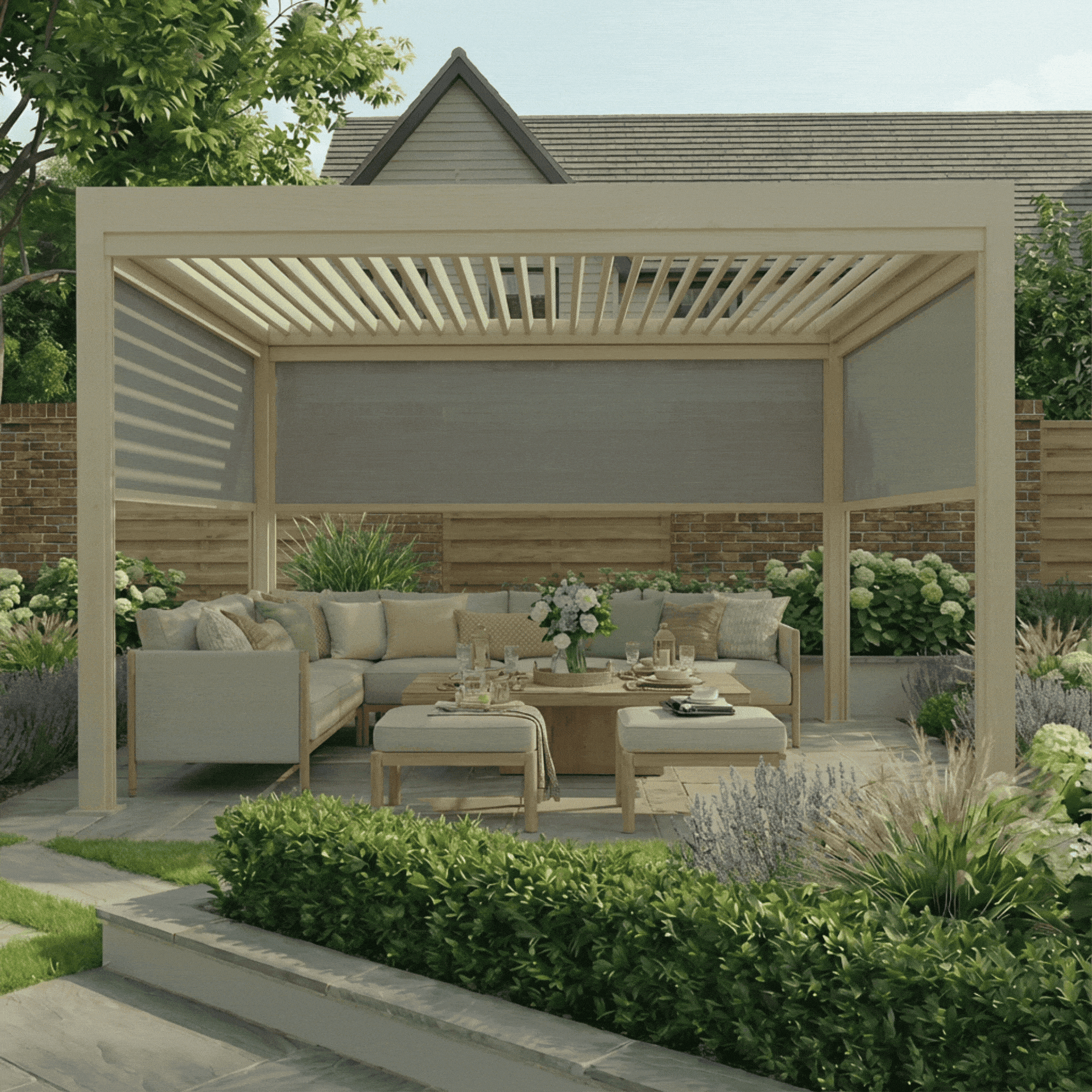

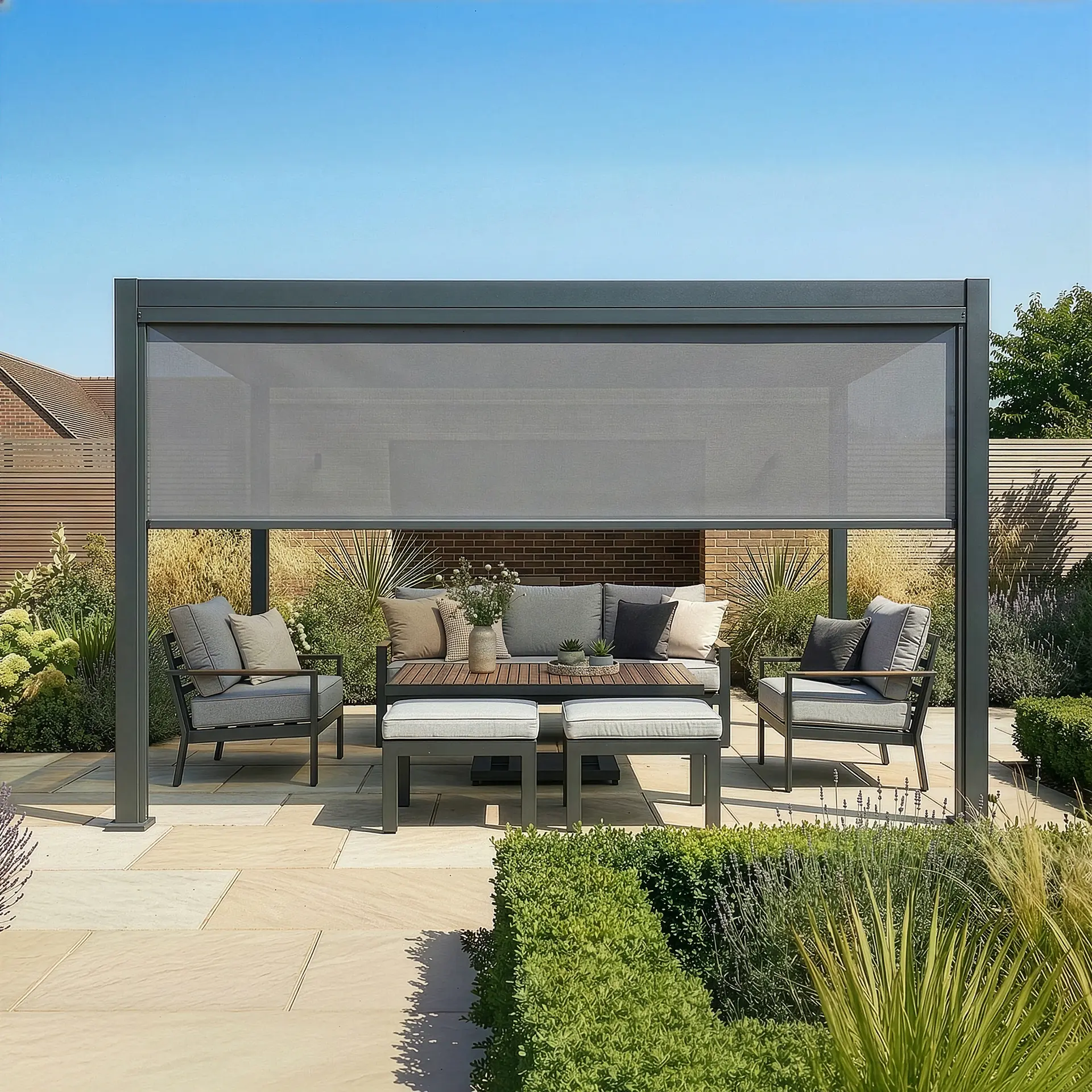

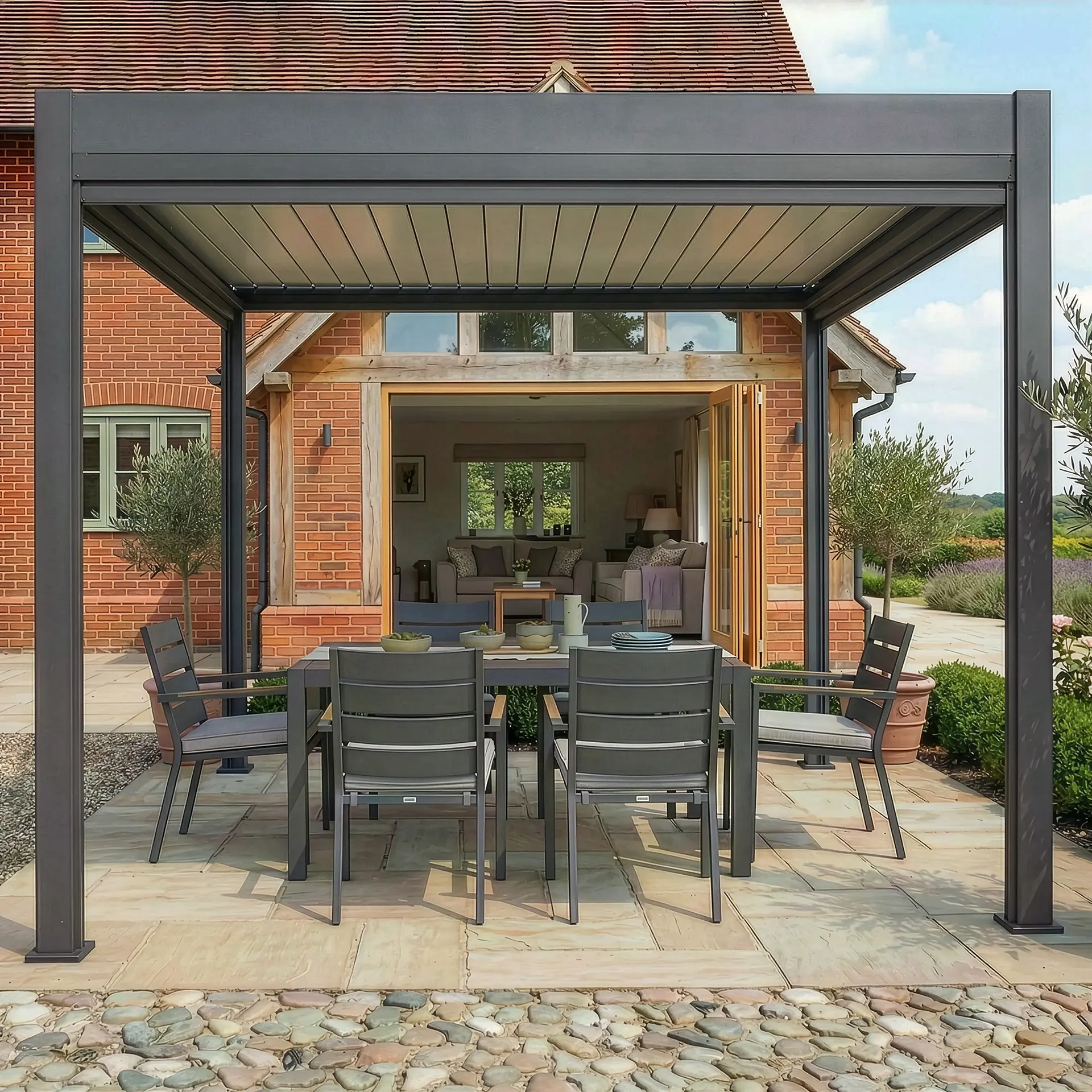

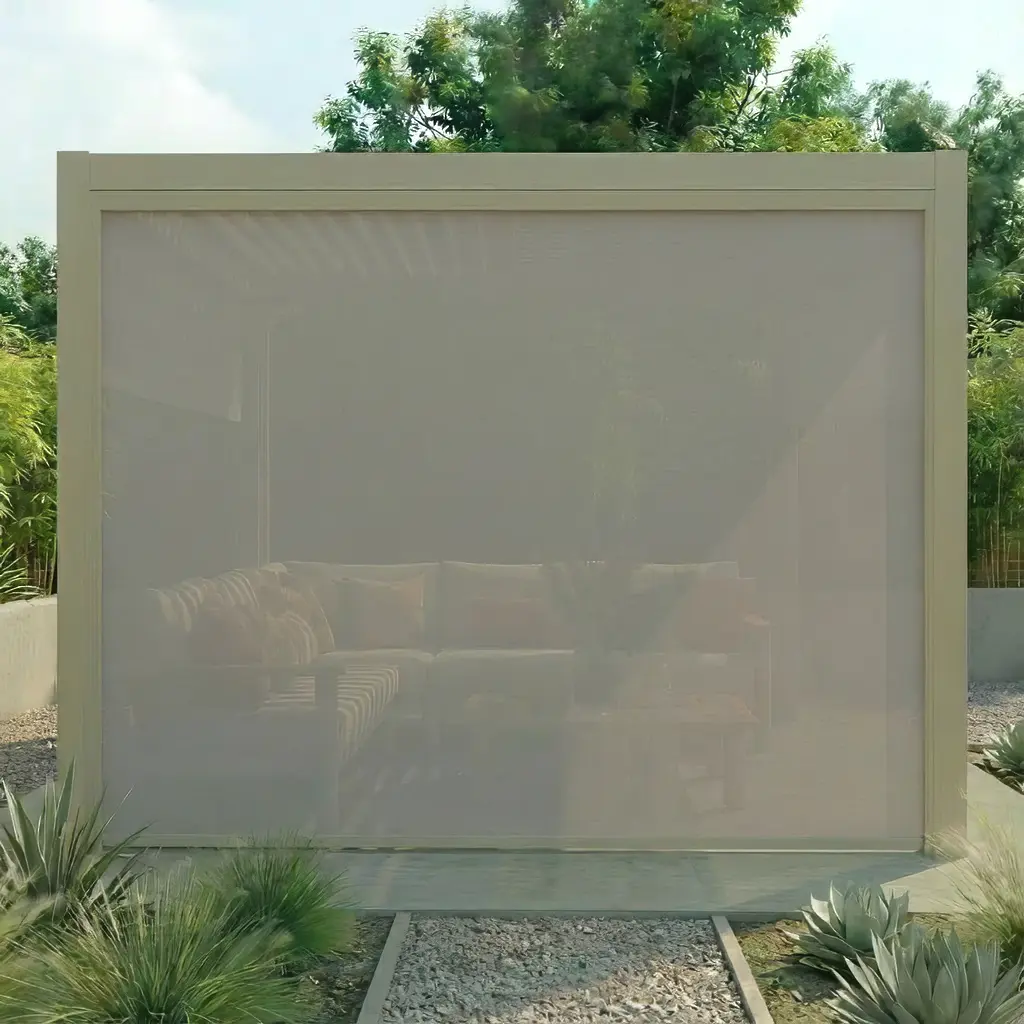

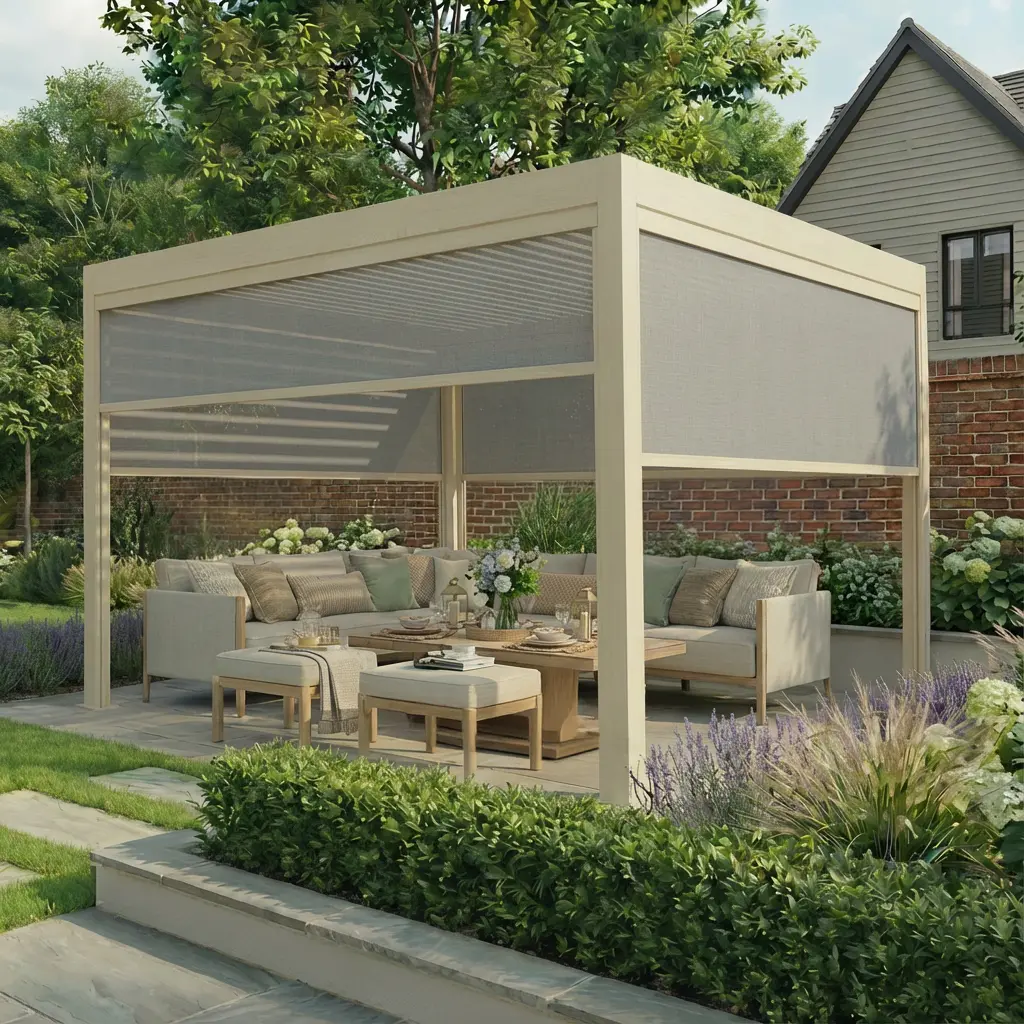

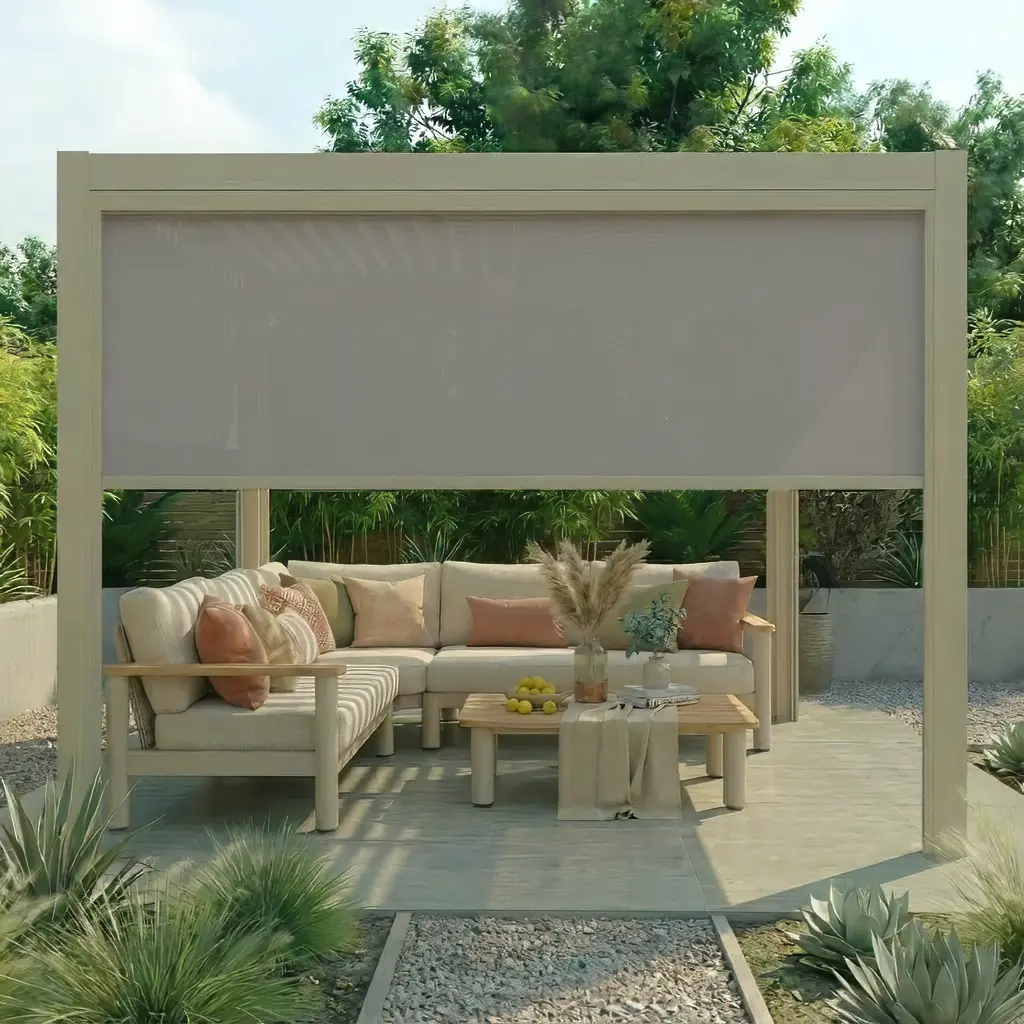

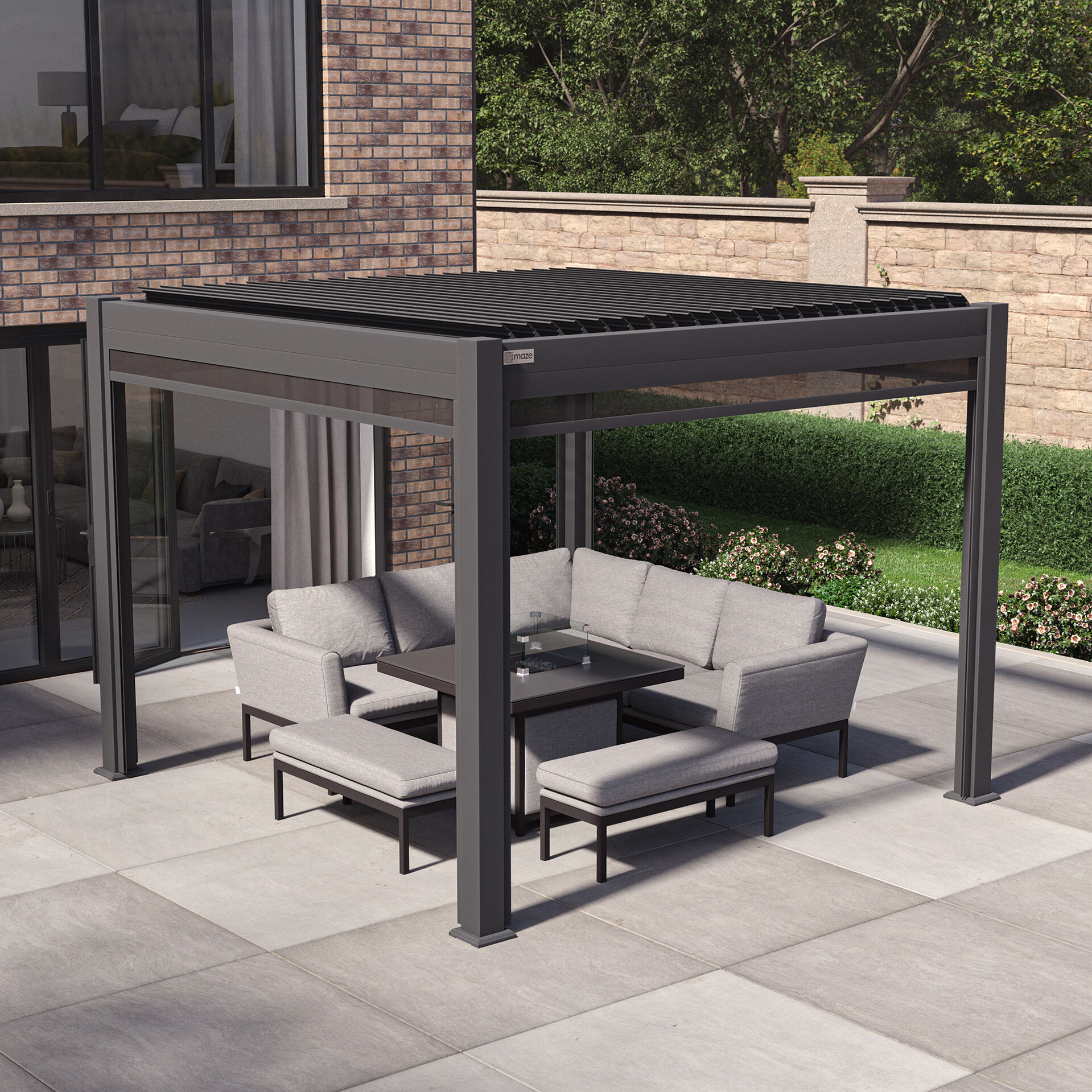

Please note: Product images show optional zip blinds fitted.
Enhance your outdoor space with the Maze Jupiter 3m x 3m Aluminium Pergola, thoughtfully engineered for style, durability, and practicality. The Jupiter Pergola is built with a sturdy aluminium frame and a full-width galvanised steel louvre roof, which allows for seamless light and airflow adjustments via a convenient crank handle. Finished in a sleek latte powder coating this stylish pergola is the perfect addition to your outdoor space.
The innovative roof system is designed with integrated water channels that direct rainwater from the roof frame into the pergola’s legs, where it exits through discreet holes at the base, keeping your outdoor area dry. Optional zip blinds made from durable texteline fabric provide additional shade and privacy. These blinds pull down effortlessly and feature a rubberised bottom edge, preventing leaves and debris from entering your space for a cleaner environment.
Pergolas must be installed on level ground for Drop Side Blinds to function properly.
We recommend the following:
-
400 mm³ Concrete Pad: The ideal foundation for maximum stability. It sits hidden beneath your final surface (tiles, decking, turf), allowing you to drill directly through for secure anchoring.
-
Tarmac, Slabs, or Block Paving: If the surface is under 150 mm thick or made of unknown composite material, lift the area and install a 400 mm³ postcrete pad underneath before mounting.
-
Decking: Can be installed directly onto secure decking, but due to wood/composite movement, a concrete pad or structural joist must be positioned beneath each footplate site.
-
Grass, Soil, or Gravel: A 400 mm³ postcrete pad is strictly required underneath every leg/footplate when fixing into loose ground.
Disclaimer: If the pergola is fitted with privacy blinds, we recommend fully opening the blinds during strong winds to prevent damage and ensure product longevity.
Please note: Product images show optional zip blinds fitted.
Specification
- Weather resistant materials
- Manual operated roof louvres via crank
- Built-in drainage system
What’s included
- 1x Jupiter Pergola
- 1x Long Crank Handle
- 1x Fixing Kit
Specification
- Weather resistant materials
- Manual operated roof louvres via crank
- Built-in drainage system
What’s included
- 1x Jupiter Pergola
- 1x Long Crank Handle
- 1x Fixing Kit

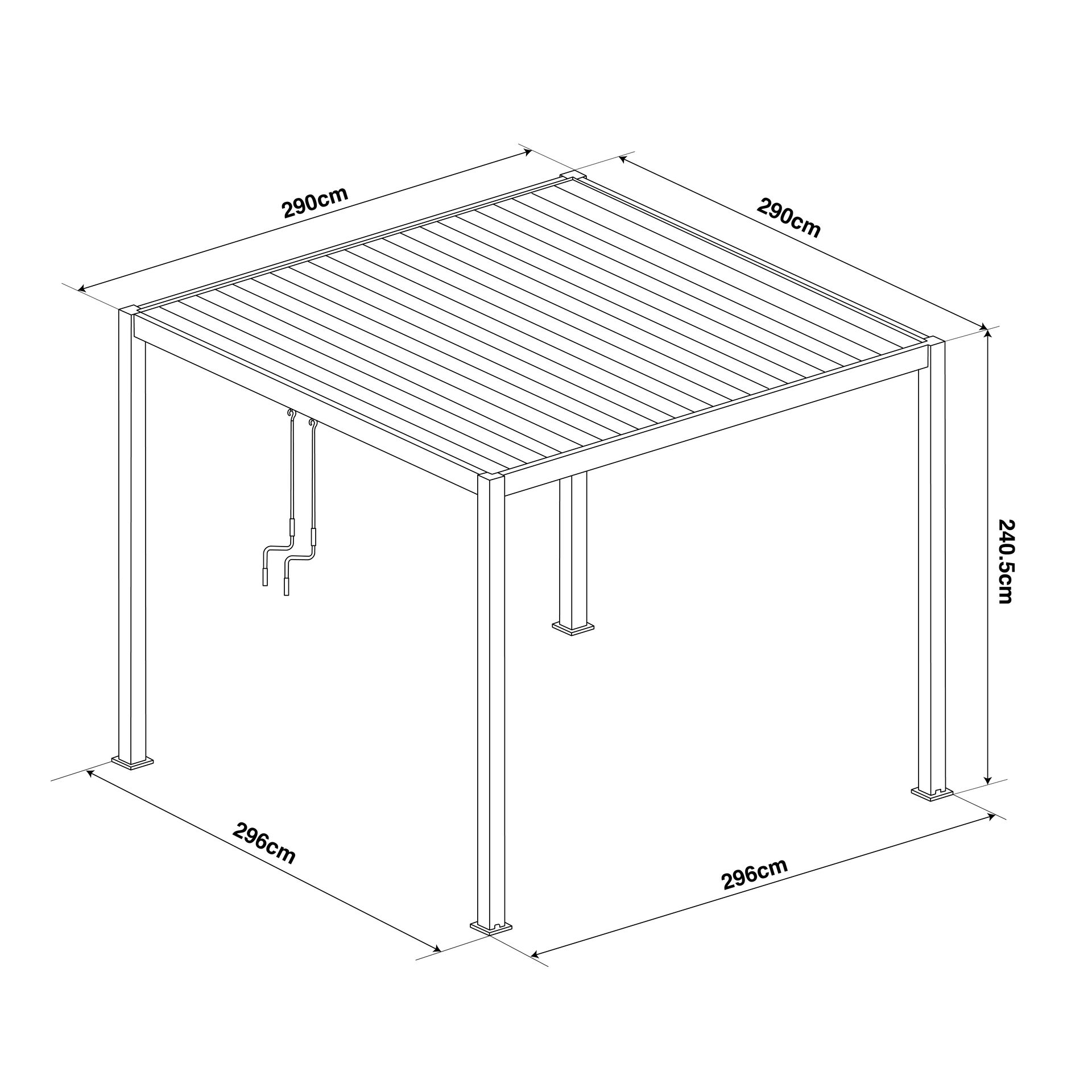

Jupiter Pergola (including footplates) - 296cm x 296cm
Jupiter Pergola (3m post to post internal) - 262cm
Pergola Height - 240.5cm (with roof closed)
Height to underside - 228cm

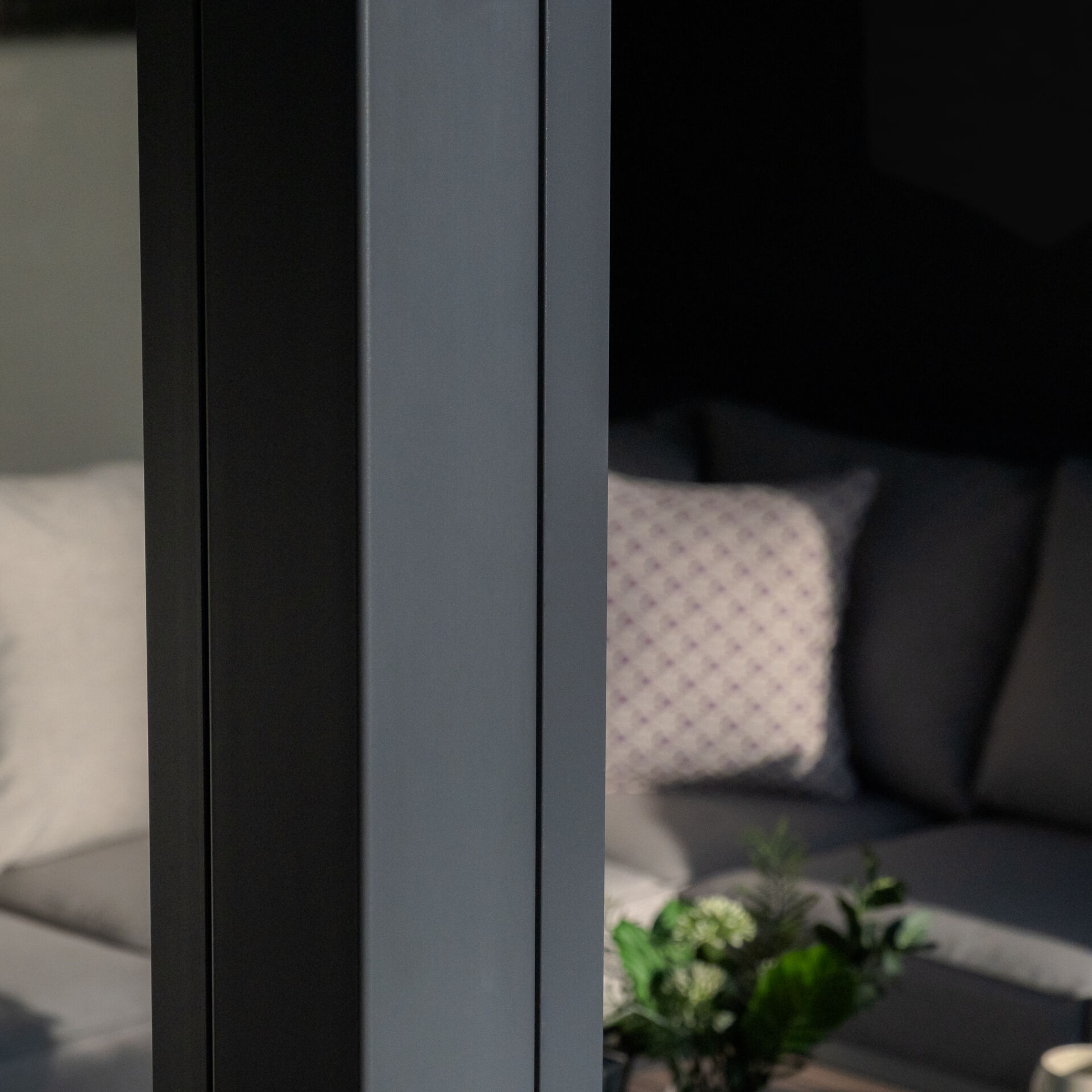

Pergola Leg Post - 10cm x 10cm
Pergola Feet Covers - 17cm x 17cm
Top Bar - 12.5cm
Jupiter Pergola (including footplates) - 296cm x 296cm
Jupiter Pergola (3m post to post internal) - 262cm
Pergola Height - 240.5cm (with roof closed)
Height to underside - 228cm
Pergola Leg Post - 10cm x 10cm
Pergola Feet Covers - 17cm x 17cm
Top Bar - 12.5cm
How To Care For Your Maze Aluminium Pergola
Our aluminium pergolas are designed to be low maintenance and made from high-quality, powder-coated aluminium that is UV resistant and suitable for outdoor use.
With a little regular care, your pergola will continue to look great and perform as intended for years to come.
Cleaning Your Pergola
For general cleaning, simply use a soft cloth or sponge with warm water and a mild soap solution.
We recommend regularly removing:
- Leaves and other garden debris
- Dirt and dust
- Bird droppings
- Any other build-up from the frame and louvres
Once cleaned, rinse with clean water and allow the pergola to dry naturally.
Do not use harsh chemicals, abrasive cleaners, wire brushes or scouring pads, as these may damage the powder-coated finish.
Built-In Drainage
Maze pergolas feature an integrated drainage system which channels rainwater through the pergola frame and down through the inside of the posts.
There is no need to open the louvres to drain rainwater.
It is important, however, to keep the drainage channels and outlets clear of leaves, dirt and other debris.
We recommend checking the drainage system regularly, particularly after periods of heavy rain or during autumn when leaves can accumulate.
Rain & Weather
Our pergolas are designed to provide shelter from normal British weather conditions.
When the louvres are closed, the roof provides protection from rain, while the integrated drainage system directs water away through the posts.
Please remember that wind-driven rain and particularly heavy rainfall can result in some water ingress, as the pergola is an outdoor shelter rather than a fully enclosed, watertight structure.
Strong Winds
Extreme weather conditions can put additional stress on your pergola and its accessories.
If your pergola is fitted with privacy or drop-side blinds, we recommend fully opening the blinds during strong winds to help prevent damage and prolong their lifespan.
Do not operate the louvres if they are obstructed by snow, ice or debris.
Damage caused by extreme weather conditions, including storm damage and high winds, is not covered under the Maze guarantee.
Caring For The Powder-Coated Finish
The powder-coated aluminium frame is designed to resist rust and withstand normal outdoor exposure.
Over time, exposure to sunlight and the elements may naturally cause some change in appearance.
Regular cleaning will help maintain the finish.
For minor scratches or areas where the powder coating has been damaged, Maze may be able to provide touch-up paint where appropriate. Cosmetic damage such as scratches or flaking of the powder coating is not covered under the structural warranty.
LED Lighting
Where your pergola is fitted with integrated LED lighting:
- Keep the electrical connections clean and dry.
- Do not use abrasive products when cleaning around the lights.
- Do not pull, bend or damage the lighting cables.
- Do not attempt to modify or repair the electrical system yourself.
Fixings & Installation
Your pergola must be securely fixed to a suitable solid base.
We recommend that pergolas are bolted to a concrete base. Paving slabs that are not secured to a suitable solid foundation may lift in windy conditions and are therefore not considered suitable for fixing the pergola.
The pergola should also be installed on level ground to ensure the louvres and any drop-side blinds operate correctly.
Pergolas that have not been correctly installed or securely bolted down may not be covered under the Maze guarantee.
Winter Care
Your aluminium pergola can remain outdoors throughout the year.
Before winter, we recommend:
- Giving the frame and louvres a thorough clean.
- Clearing all drainage channels and outlets.
- Removing leaves and debris from the roof and gutters.
- Checking that the louvres operate correctly.
- Checking for any visible damage or loose fixings.
If you have blinds fitted, keep them fully open during periods of strong winds.
How To Care For Your Maze Aluminium Pergola
Our aluminium pergolas are designed to be low maintenance and made from high-quality, powder-coated aluminium that is UV resistant and suitable for outdoor use.
With a little regular care, your pergola will continue to look great and perform as intended for years to come.
Cleaning Your Pergola
For general cleaning, simply use a soft cloth or sponge with warm water and a mild soap solution.
We recommend regularly removing:
- Leaves and other garden debris
- Dirt and dust
- Bird droppings
- Any other build-up from the frame and louvres
Once cleaned, rinse with clean water and allow the pergola to dry naturally.
Do not use harsh chemicals, abrasive cleaners, wire brushes or scouring pads, as these may damage the powder-coated finish.
Built-In Drainage
Maze pergolas feature an integrated drainage system which channels rainwater through the pergola frame and down through the inside of the posts.
There is no need to open the louvres to drain rainwater.
It is important, however, to keep the drainage channels and outlets clear of leaves, dirt and other debris.
We recommend checking the drainage system regularly, particularly after periods of heavy rain or during autumn when leaves can accumulate.
Rain & Weather
Our pergolas are designed to provide shelter from normal British weather conditions.
When the louvres are closed, the roof provides protection from rain, while the integrated drainage system directs water away through the posts.
Please remember that wind-driven rain and particularly heavy rainfall can result in some water ingress, as the pergola is an outdoor shelter rather than a fully enclosed, watertight structure.
Strong Winds
Extreme weather conditions can put additional stress on your pergola and its accessories.
If your pergola is fitted with privacy or drop-side blinds, we recommend fully opening the blinds during strong winds to help prevent damage and prolong their lifespan.
Do not operate the louvres if they are obstructed by snow, ice or debris.
Damage caused by extreme weather conditions, including storm damage and high winds, is not covered under the Maze guarantee.
Caring For The Powder-Coated Finish
The powder-coated aluminium frame is designed to resist rust and withstand normal outdoor exposure.
Over time, exposure to sunlight and the elements may naturally cause some change in appearance.
Regular cleaning will help maintain the finish.
For minor scratches or areas where the powder coating has been damaged, Maze may be able to provide touch-up paint where appropriate. Cosmetic damage such as scratches or flaking of the powder coating is not covered under the structural warranty.
LED Lighting
Where your pergola is fitted with integrated LED lighting:
- Keep the electrical connections clean and dry.
- Do not use abrasive products when cleaning around the lights.
- Do not pull, bend or damage the lighting cables.
- Do not attempt to modify or repair the electrical system yourself.
Fixings & Installation
Your pergola must be securely fixed to a suitable solid base.
We recommend that pergolas are bolted to a concrete base. Paving slabs that are not secured to a suitable solid foundation may lift in windy conditions and are therefore not considered suitable for fixing the pergola.
The pergola should also be installed on level ground to ensure the louvres and any drop-side blinds operate correctly.
Pergolas that have not been correctly installed or securely bolted down may not be covered under the Maze guarantee.
Winter Care
Your aluminium pergola can remain outdoors throughout the year.
Before winter, we recommend:
- Giving the frame and louvres a thorough clean.
- Clearing all drainage channels and outlets.
- Removing leaves and debris from the roof and gutters.
- Checking that the louvres operate correctly.
- Checking for any visible damage or loose fixings.
If you have blinds fitted, keep them fully open during periods of strong winds.
Standard Delivery
Please allow our courier partners 10 working days to deliver your item(s) to your delivery address. After your order has been dispatched, you will then receive further communication from Maze Living or our courier partners providing you with further details of your delivery. 'Standard delivery', on orders containing small accessories only, will be delivered by DX or a similar courier. Orders including large items will be delivered by a 2-man team who will carry your items to a place of your choice, outside, if accessible.
Pallet Delivery
If it is available and you change the delivery to a 'Pallet Delivery', your order can be delivered in as little as 2-3 working days (cut off for 2 days is 11am every weekday). Pallet deliveries differ in that your order will be left kerbside on pallets outside your address and does not include any optional extra services or pallet disposal. By selecting this option, you agree to this, and that a large lorry can access the road outside your property. You may need a minimum of 2 people to move large/heavy items.
However.... stock can run out fast at times so keep an eye out for the 'Going Fast' badge. This is genuine and means we really are running out of stock.
Jupiter Pergola Build & Bolt Down Service -
1 x build for Jupiter 3m x 3m or 3m x 4m Pergola - including a Bolt Down service
All pergolas should be bolted down to the ground so as not to lift, buckle in strong winds, or cause harm to buildings or people!
We advise a firm ground fixing is used for this pergola, ideally bolted to a concrete base. The delivery destination must be level and safe for the crew to navigate around (we will not assemble around hot tubs or large non moving equipment that could cause health and safety issues).
A bolt down damage waiver must be signed before installation. This is against damage to your flooring or to the pergola if it is damaged by not bolting it to the floor as recommended. You will be responsible for securing the pergola to the floor/ground if you sign to say that you do not want us to do it
Please Note - Bolting to Porcelain Tiles is included in our Build and Bolt Down Price.
Customer Returns
If you wish to return a product you have ordered from us, please use the information on our Terms and Conditions page to find out more.
Standard Delivery
Please allow our courier partners 10 working days to deliver your item(s) to your delivery address. After your order has been dispatched, you will then receive further communication from Maze Living or our courier partners providing you with further details of your delivery. 'Standard delivery', on orders containing small accessories only, will be delivered by DX or a similar courier. Orders including large items will be delivered by a 2-man team who will carry your items to a place of your choice, outside, if accessible.
Pallet Delivery
If it is available and you change the delivery to a 'Pallet Delivery', your order can be delivered in as little as 2-3 working days (cut off for 2 days is 11am every weekday). Pallet deliveries differ in that your order will be left kerbside on pallets outside your address and does not include any optional extra services or pallet disposal. By selecting this option, you agree to this, and that a large lorry can access the road outside your property. You may need a minimum of 2 people to move large/heavy items.
However.... stock can run out fast at times so keep an eye out for the 'Going Fast' badge. This is genuine and means we really are running out of stock.
Jupiter Pergola Build & Bolt Down Service -
1 x build for Jupiter 3m x 3m or 3m x 4m Pergola - including a Bolt Down service
All pergolas should be bolted down to the ground so as not to lift, buckle in strong winds, or cause harm to buildings or people!
We advise a firm ground fixing is used for this pergola, ideally bolted to a concrete base. The delivery destination must be level and safe for the crew to navigate around (we will not assemble around hot tubs or large non moving equipment that could cause health and safety issues).
A bolt down damage waiver must be signed before installation. This is against damage to your flooring or to the pergola if it is damaged by not bolting it to the floor as recommended. You will be responsible for securing the pergola to the floor/ground if you sign to say that you do not want us to do it
Please Note - Bolting to Porcelain Tiles is included in our Build and Bolt Down Price.
Customer Returns
If you wish to return a product you have ordered from us, please use the information on our Terms and Conditions page to find out more.
Reviews
What our customers are saying about this product
A selection of reviews collected by TrustpilotBased on 9 reviews
dianne couplans
The product is superb quality and it looks incredible- so happy with it
Sally
Perfect, shame I didn’t get this a few weeks ago when the weather started been glorious.
Pamela Betting
Lovely product and stunning to look at very satisfied with all aspects of this pergola.I totally would recommend Maze to my friends and family.
Dave
Great product when it arrived. Really sturdy and great to catch the sun or get a break from the sun.
lynsey carrington
Absolutely love this product, two other of my neighbours have this and it just looks fantastic ,,,very strong and looks more expensive than what it actually was
Sarah Butt
Great product, clear instructions. Straightforward to assemble
Chris Dyke
Brilliant such good quality.
customerDavid Marples
Haven’t built it yet need help
Sue
Looks fantastic & excellent quality. Instructions relatively straightforward
Questions & Answers
Got a question about this product? Let us know below and one of our product specialists will reply within 24 hours...
Rupert
Does this include the lights?
Maze Living
Hello Rupert, I can confirm that this pergola does not include lights.
Jamie Leon
Can you add lights separately to the pergola?
Maze Living
Hello Jamie, we do not supply LED lights for this pergola.
Natalia
Hi, what is the weight of this pergola? Thanks
Maze Living
Hello Natalia, the weight is 132kg.
Lorraine
Does this secure to the patio with bolts?
Maze Living
Hello Lorraine, that is correct. We recommend that it is bolted to a concrete base.
Richard
What is the wind resistance of the structure?
Maze Living
Hello, the pergolas are resistant to winds between 38.53-45.98mph.
Chris
What is the warranty on this item?
Maze Living
Hi, we offer a 2 year warranty on this pergola
Julie
Is it made out of aluminium and the coated?
Maze Living
Hello Julie,
Our Jupiter pergolas are fully aluminium apart from the roof which is a galvanised steel. Our Como Pergolas and Eden Pergolas are made fully from aluminium.
Dion Norbury
With your fitting service can you bolt the pergola to a porcelain patio?
Maze Living
Hello,
We can certainly bolt to a porcelain surface.
Kind Regards,
Peter wood
Can you tell me what size the bolt is that fixes the post for the Jupiter pergola into the ground (mm depth ) Thanks
Maze Living
Thanks for checking Peter,
13ml width 18ml depth but the bolts are supplied upon delivery
glenda davies
What is the RAL number of the colour of the grey Jupiter pergola?
Maze Living
Hi Glenda,
RAL 9004.
Related products
Similar products that you might be interested in.
Recently viewed
Still considering any of these products?
