Maze - Eden Aluminium Pergola Jointing Kit 3m Side - Grey

£159
Extra 5% off with code SUMMER5

Colour: Grey

Grey Grey
2 year warranty
Need a hand?
Extra 5% off with code SUMMER5
In stock
Order within 2 days for estimated delivery by 3rd August 2026 5th August 2026

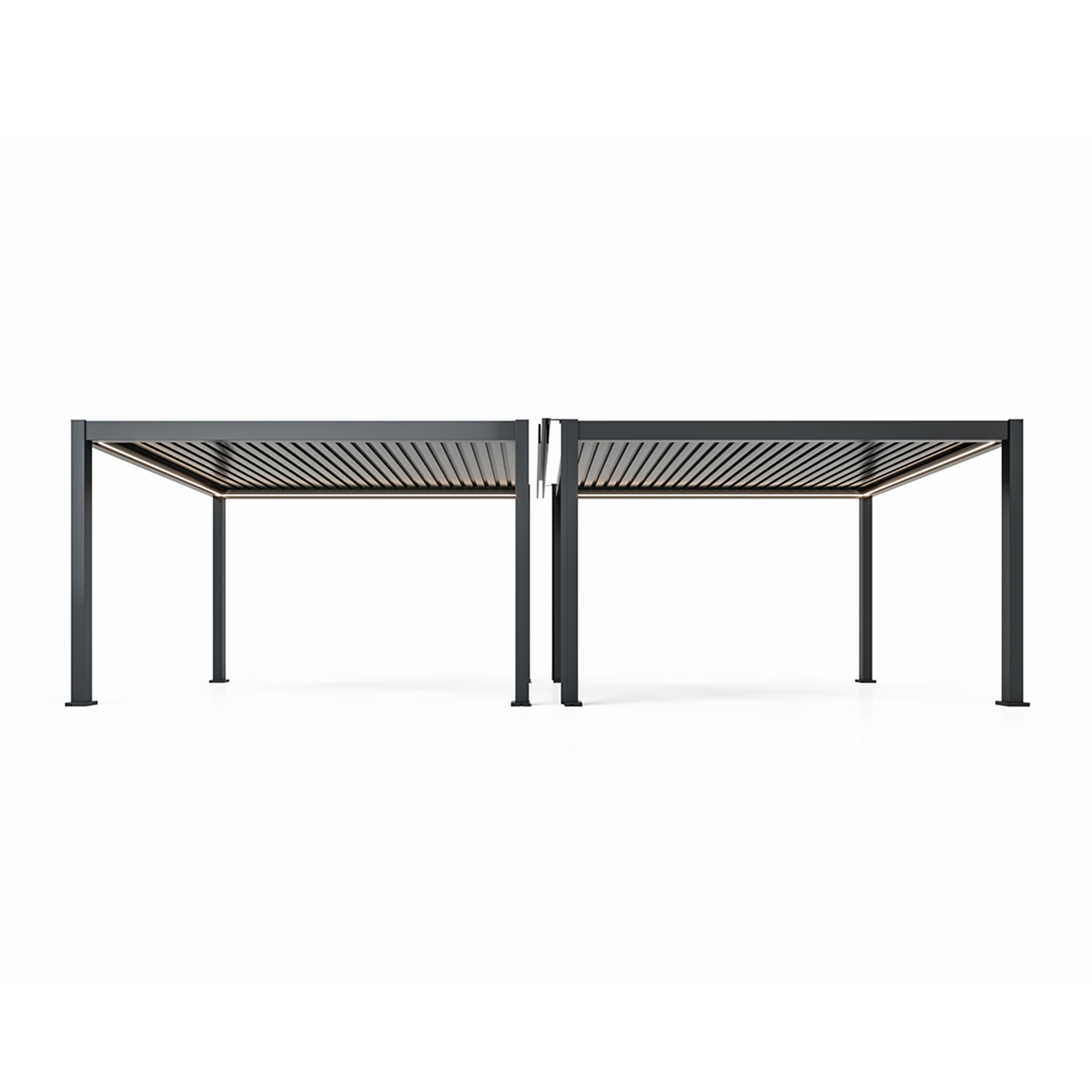

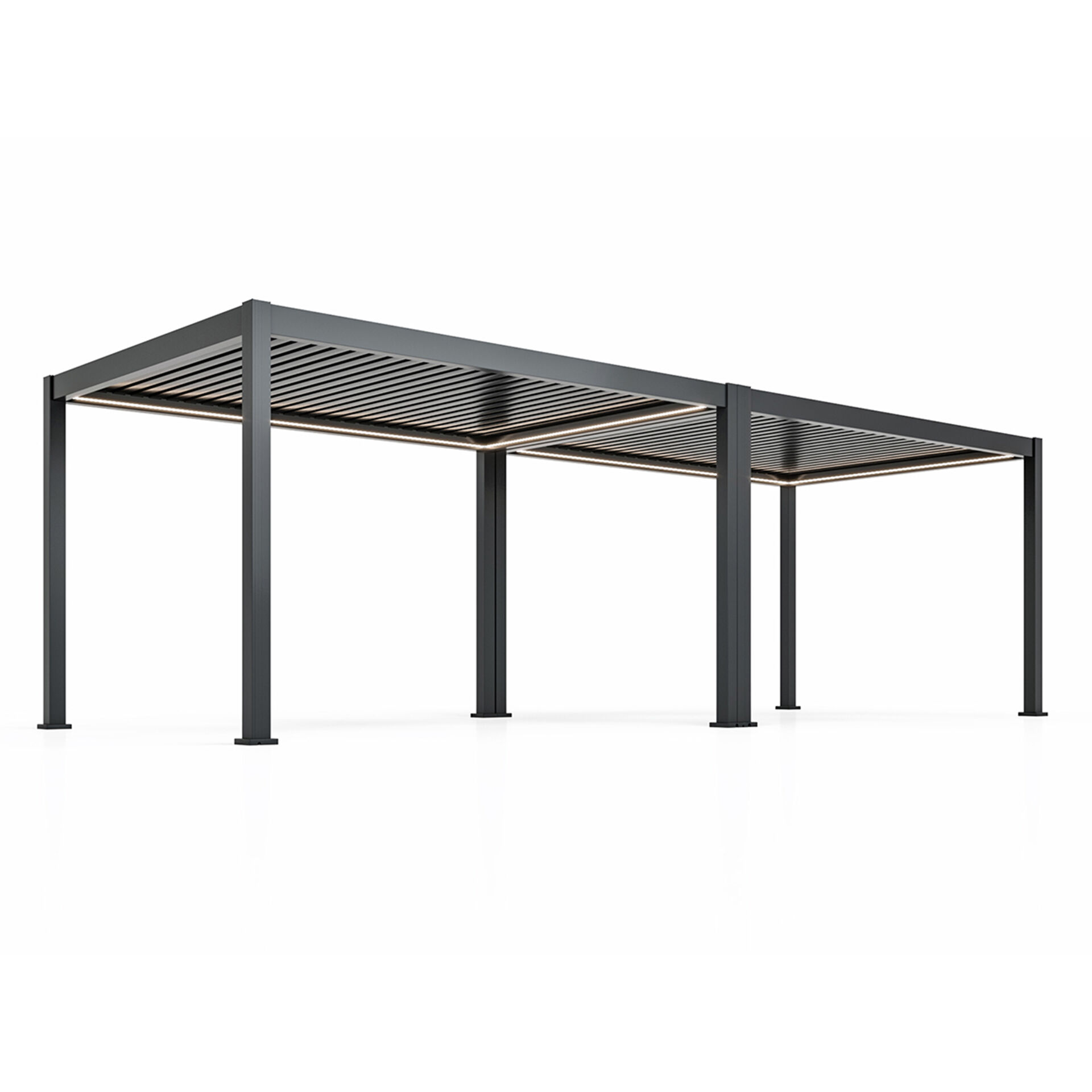

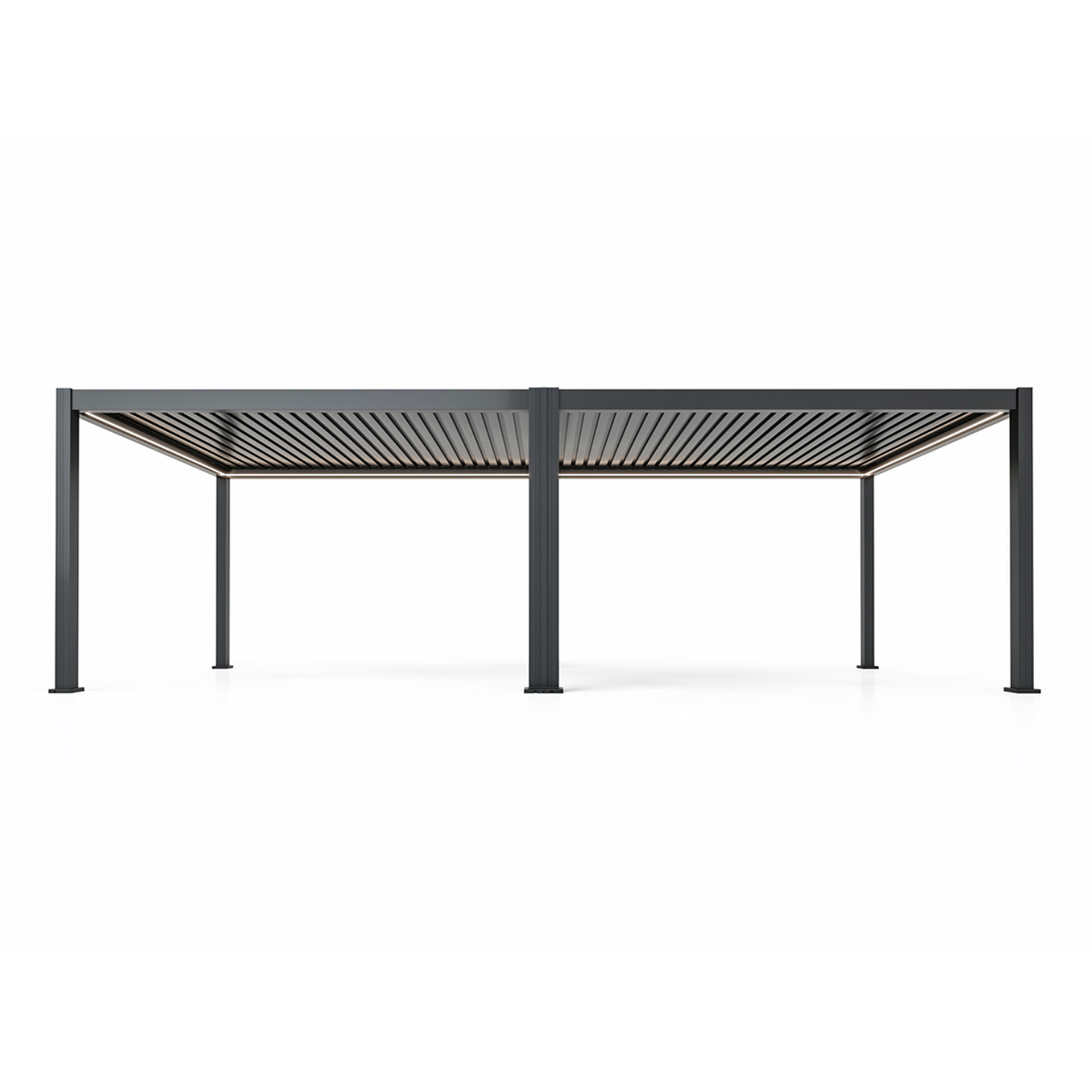

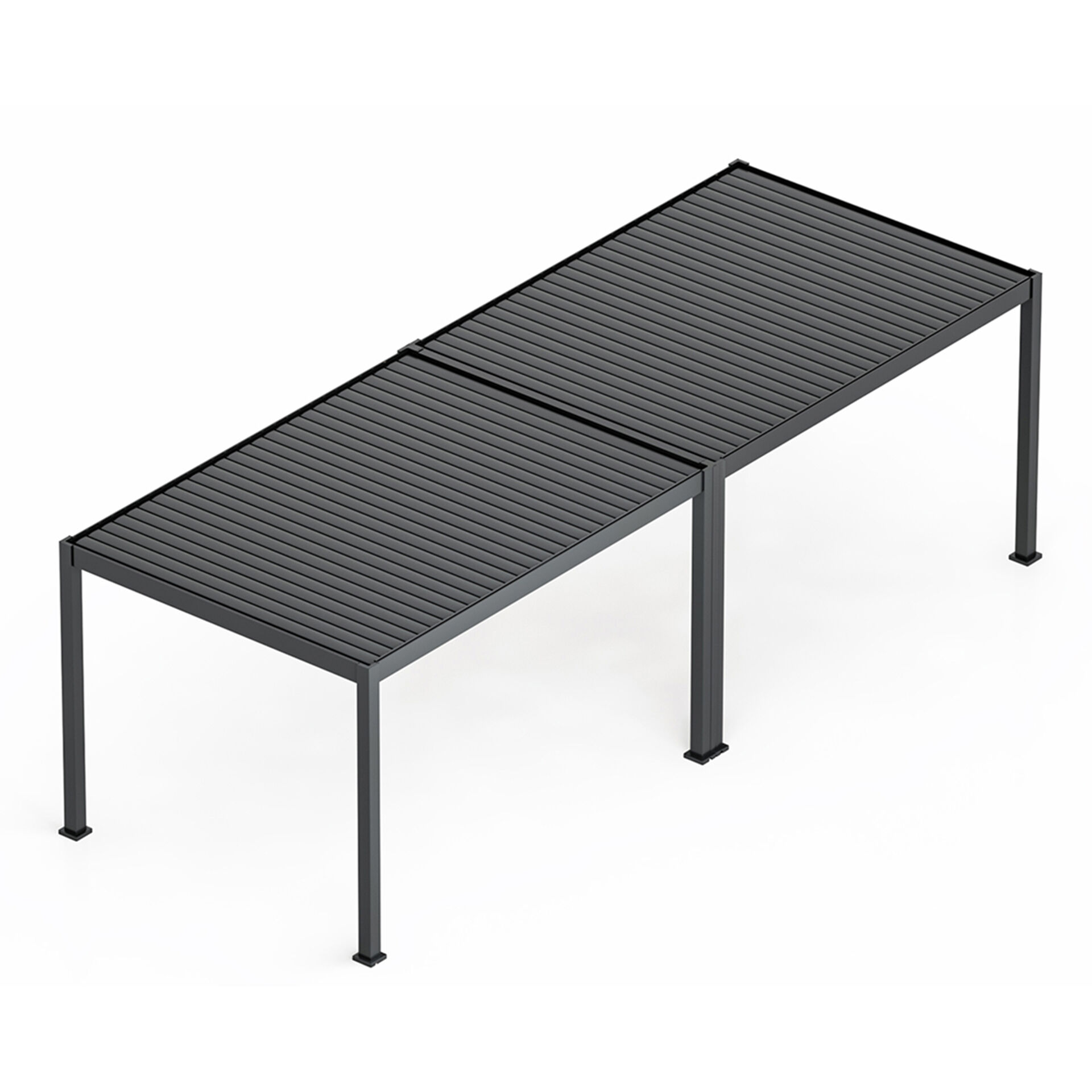

The Maze Eden 3m Jointing Kit has been specifically designed to seamlessly connect two Maze Eden 4m x 3m Motorised Roof Pergolas, creating an impressive 8m x 3m outdoor structure. Engineered to provide a secure and professional connection, the kit maintains the clean, contemporary appearance of the original pergola design while delivering excellent structural stability.

Manufactured from durable, powder-coated aluminium to match the Maze Eden pergola frame, the jointing kit blends perfectly with the existing structure for a sleek, integrated finish. It has been designed to ensure the connected pergolas function as a single, cohesive installation without compromising their premium aesthetic.Ideal for larger outdoor living, dining, or entertaining areas, the 3m Jointing Kit offers a simple and effective solution for expanding your Maze Eden pergola system to suit your space.

Please Note: This jointing kit is compatible only with the Maze Eden 4m x 3m Motorised Roof Pergola. Pergolas are sold separately and must be purchased in addition to this kit. Installation should be carried out on a solid, level surface in accordance with the pergola installation instructions.

Specification

  • Weather Resistant Materials
  • Powder Coated Aluminium – RAL 7016 (Grey)
  • What’s included

    • 1x Jointing Kit for Eden Pergola 3m Side

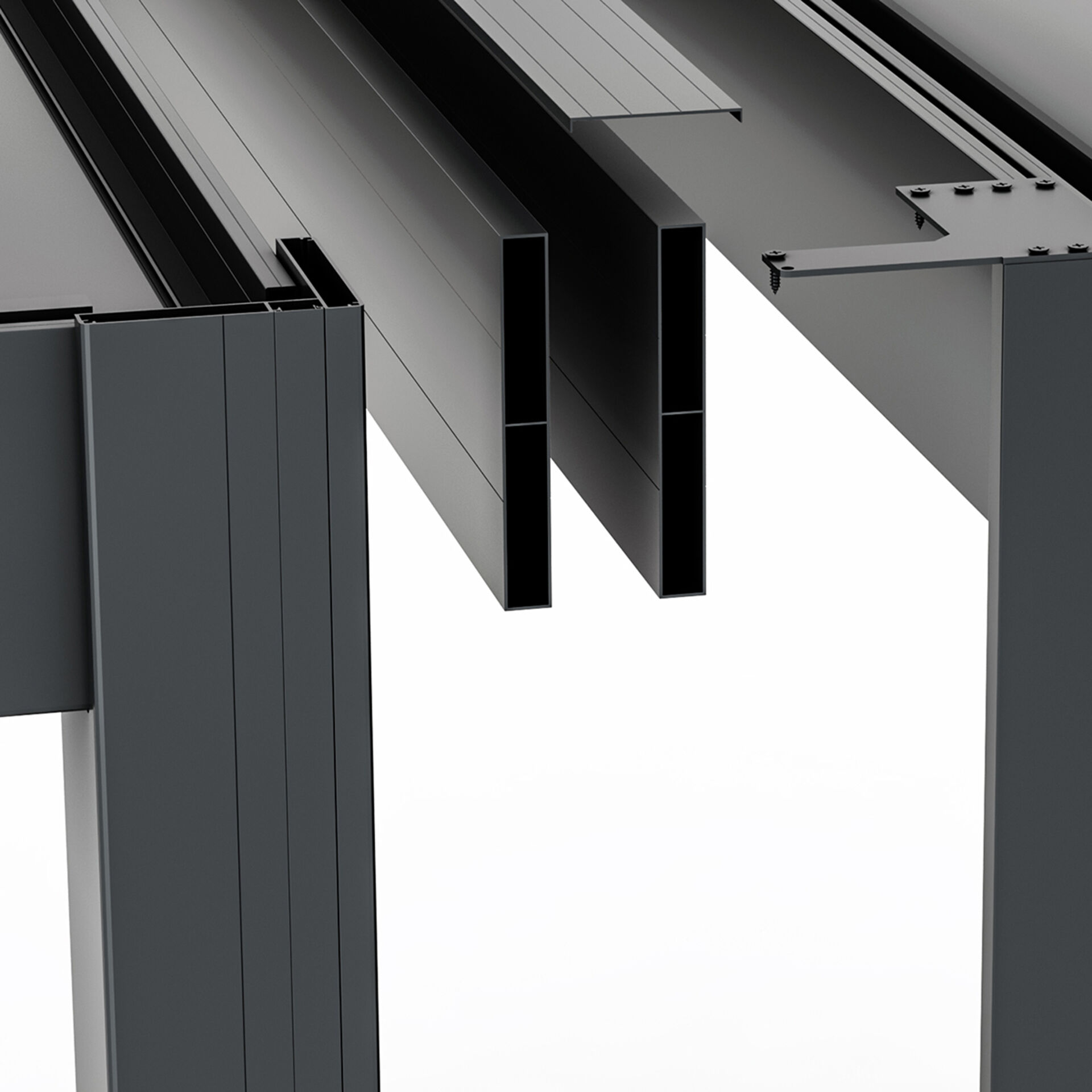

      Jointing Beam Top Cover (with Pre-installed 3M Adhesive Tape)

      Overall length: 2868.31mm

      Internal length: 2779.11mm

      Width: 250.6 mm

      T-Shaped Cover (with Pre-installed 3M Adhesive Tape)

      Length: 2370mm

      Width: 53mm

      Thickness/height: 11.94mm

      Jointing Beam Bottom Cover (with Pre-installed 3M Adhesive Tape)

      Length: 2622mm

      Width: 83mm

      Thickness: 2.5mm

      Jointing Base Plate

      Overall width: 180mm

      Overall height: 180mm

      Top width (between mounting holes): 149.21mm

      Inner opening width: 65mm

      Inner opening height: 64.7mm

      Mounting flange

      Flange width: 65mm

      Hole centre spacing: 47mm

      Flange height: 34mm

      Material thickness: 5mm

      Corner cut-out: 35 × 17.5mm

      Chamfer: 17.5mm

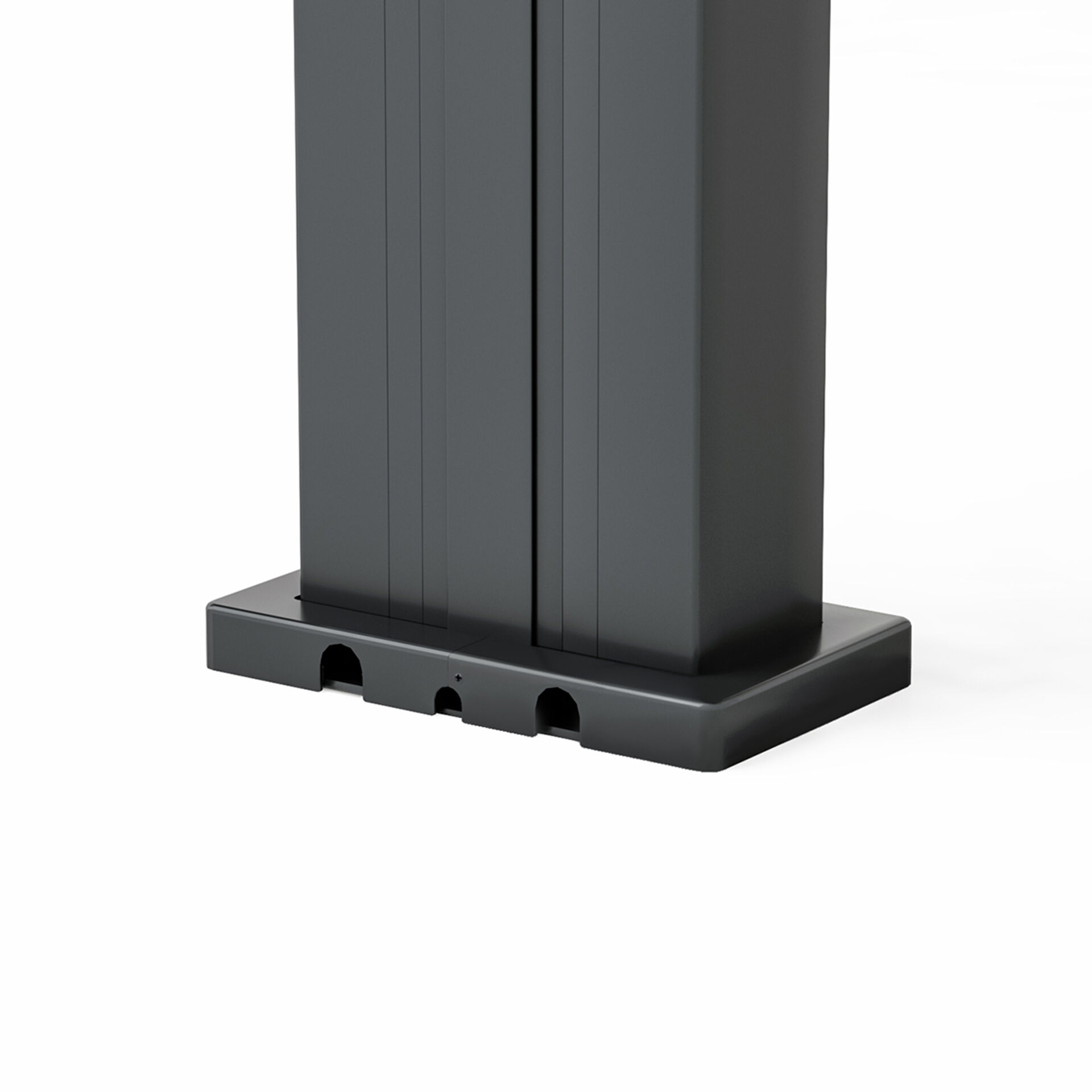

      Jointing Base Plate Cover

      Overall width: 160.9mm

      Overall height: 192mm

      Overall depth: 35mm

      Internal opening height: 122.8mm

    Goods you have ordered will be delivered direct to the billing address. Standard delivery is usually within 7 - 10 working days, but you can change this to a pallet delivery, which could be delivered in as little as 2-3 working days. Should you have any questions about an order you have placed with us, we welcome you to contact us by telephone on 01440 710673.

    Standard Delivery

    Please allow our courier partners 10 working days to deliver your item(s) to your delivery address. After your order has been dispatched, you will then receive further communication from Maze Living or our courier partners providing you with further details of your delivery. 'Standard delivery', on orders containing small accessories only, will be delivered by DX or a similar courier. Orders including large items will be delivered by a 2-man team who will carry your items to a place of your choice, outside, if accessible. They will remove the packaging and build your items, if you have purchased these extra services.

    Pallet Delivery

    If it is available and you change the delivery to a 'Pallet Delivery', your order can be delivered in as little as 2-3 working days (cut off for 2 days is 11am every weekday). Pallet deliveries differ in that your order will be left kerbside on pallets outside your address and does not include any optional extra services or pallet disposal. By selecting this option, you agree to this, and that a large lorry can access the road outside your property. You may need a minimum of 2 people to move large/heavy items.

    However.... stock can run out fast at times so keep an eye out for the 'Going Fast' badge.  This is genuine and means we really are running out of stock.

    Eden Pergola Build & Bolt Down Service -

    1 x build for Eden 3m x 4m or 4m x 4m Pergola - including a Bolt Down service

    All pergolas should be bolted down to the ground so as not to lift, buckle in strong winds, or cause harm to buildings or people!

    We advise a firm ground fixing is used for this pergola, ideally bolted to a concrete base. Please note paving slabs are not ideally suitable for fixing, if they are not laid on a solid concrete base as they too can then lift in windy weather.  The delivery destination must be level and safe for the crew to navigate around (we will not assemble around hot tubs or large non moving equipment that could cause health and safety issues).

    A bolt down damage waiver must be signed before installation. This is against damage to your flooring or to the pergola if it is damaged by not bolting it to the floor as recommended. You will be responsible for securing the pergola to the floor/ground if you sign to say that you do not want us to do it.
